YQZD-400

纸盘机 YQZD-400

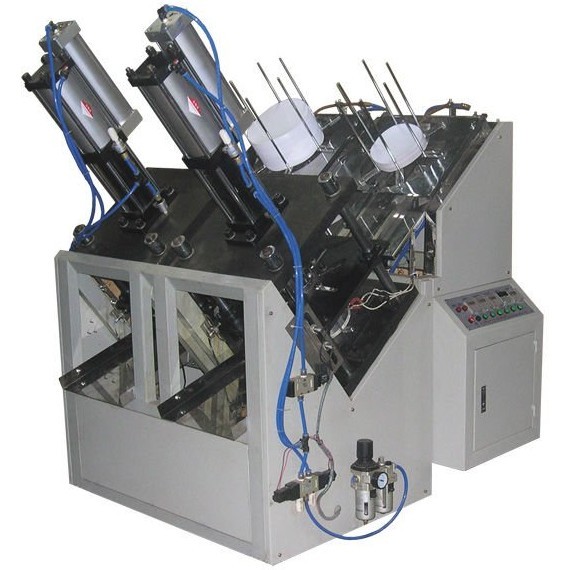

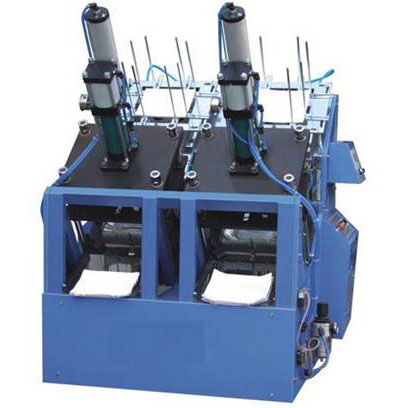

Model YQZD-400 Medium-speed Automatic Paper Plate Forming Machine was developed and researched in order to meet the market requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Model YQZD-400 medium-speed paper plate machine adopts high efficient pressurizing air cylinder, so that the Max. pressure can reach to3T ,Compared with the oil pressure one, it has the advantages of high speed, environment protection and humanism desin .
Standard YQZD-400 Paper plate machine has two working stations, each station install one set of mold and each station has separately PLC digital control and electric control.
It is widely applied to make paper plate (or aluminum foil laminated paper plate) in round (rectangle, square, circular, or irregular) shape. Machine speed changes against the material (paper) thickness and the plate size.

Main technical data
1.

paper plate size

5--11 inch (mold exchangeable);also available to make any special size  by customer order
2.

raw material

(100gsm—1000gsm)  paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other
3. speed 65—80 pcs /min
4. Total Power 220V 50Hz;3kw  or 380V,50HZ,3kw
5. weight 600kgs
6. Overall size 1430 x1600x 1900 mm;
7. Working air supply Air pressure :0.8MPa,air out-put: 1 m3/minute  (need to buy Air compressor)
8. If your plate is very large, and the paper is up 600gsm, we design a special machine for you

Quotation:

Machine Quantity Best Price
YQZD-400 Middle Speed Paper Plate Making Machine 1 SET FOB NINGBO
  USD

Note:
1. Delivery Time: within 40 working days after received the advance payment.
2. Payment Item: 30% deposit by T/T, and 70% balance before delivery.
3. Shipment from: Ningbo port, China.
4. Packing Method: wooden cases
5. Price Expiry Date: 30 days since quotation.
6. Quality Warranty: 1 Year as FREE since arrived at your port.
