Parameter

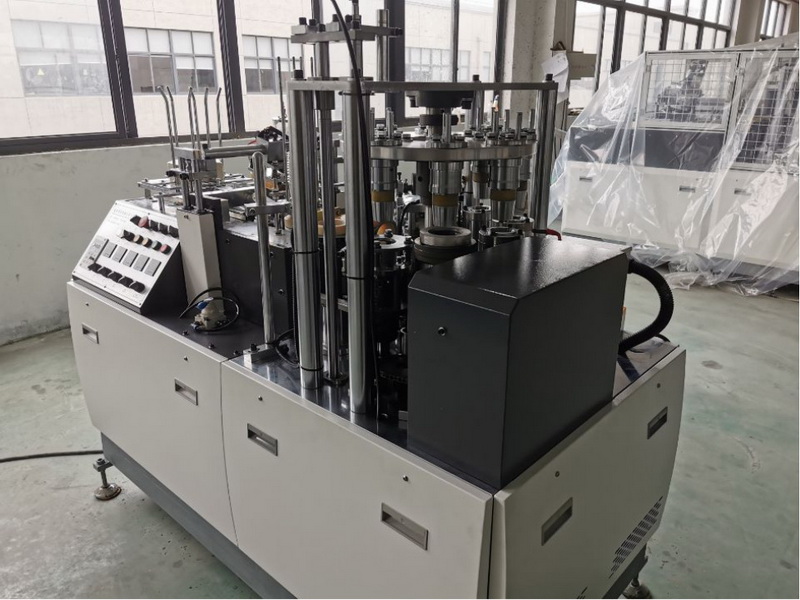

| 名称Name | 槽轮型单盘纸杯机 | |
| 型号Model | YQ-9100型 | |
| 含税出厂价Price | ||
| 对应纸杯尺寸 Paper Cup Size |
1.5-9OZ | |
| 材料要求Raw Material | 单淋膜纸 One-side PE | |
| 速度Speed | 90-100pcs/min | |
| 纸张厚度要求 Suitable paper weight |
150-180g/㎡；±20g/㎡ | |
| 电压要求Voltage supply | 380V，50HZ | |

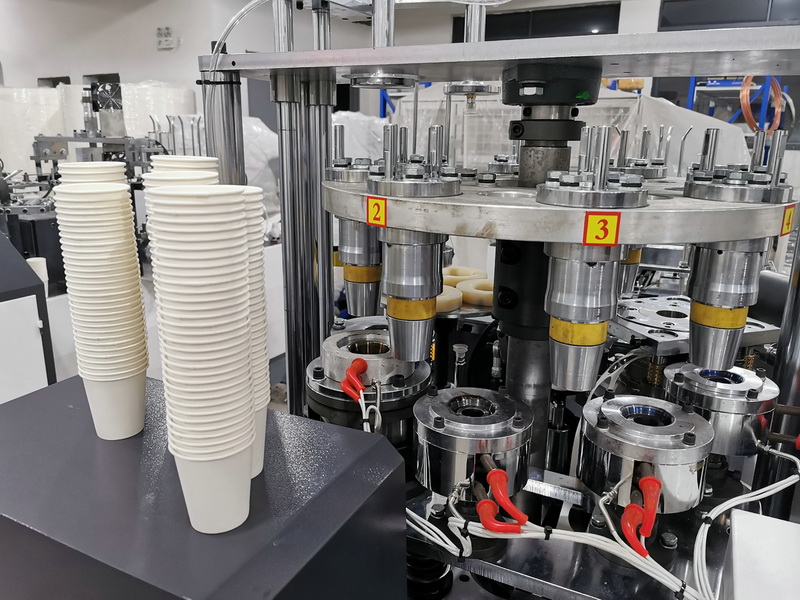

| 纸杯规格cup size | 底bottom28-54mm，上口top40-75mm，高high30-95mm | |
| 供气要求 Working Air Source |
NO | |
| 功率General power | 3.5 kw | |
| 重量Net weight | 1200kg | |
| 尺寸 Measurement (mm) |
主机 | L:1730mm;W:875mm;H:1550mm |

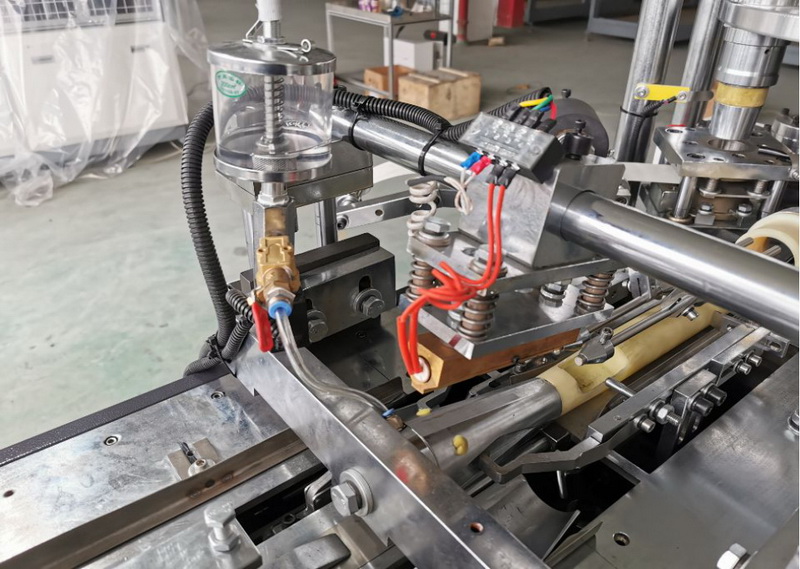

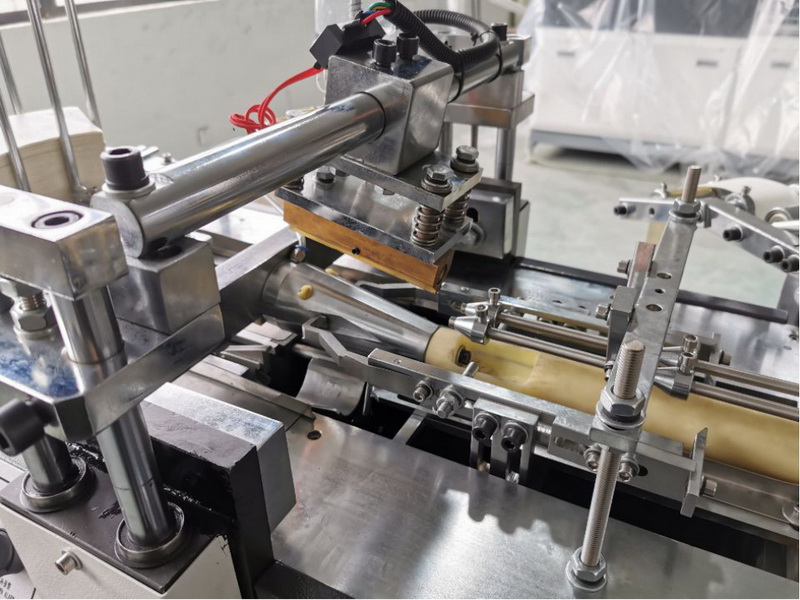

| 杯身粘合方式 Cup Side Sealing |
铜条加温 Copper bar heating | |
| 底部滚花 Bottom Knurling |
Heating 加热 | |
| 40英尺货柜容量40feet container capacity | 13台 13 machine | |
| 可以按照客户要求定制模具 We can customize machine and mold according to customer’s requirement. | ||
