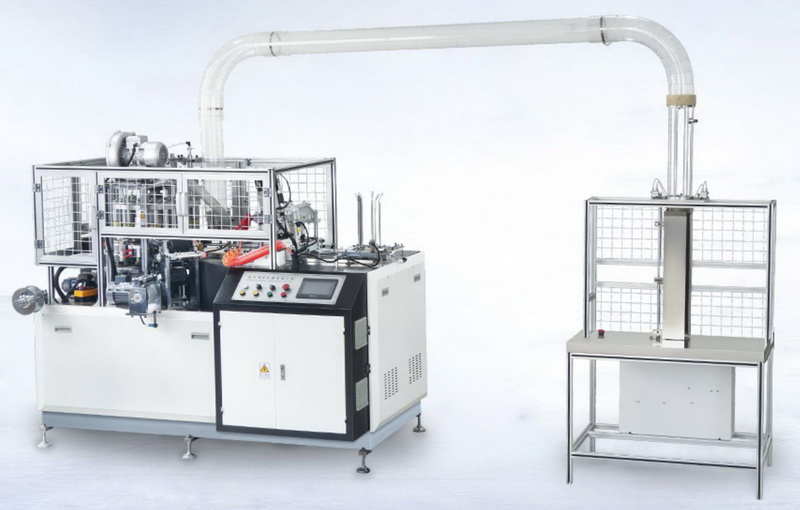

YQ-1680

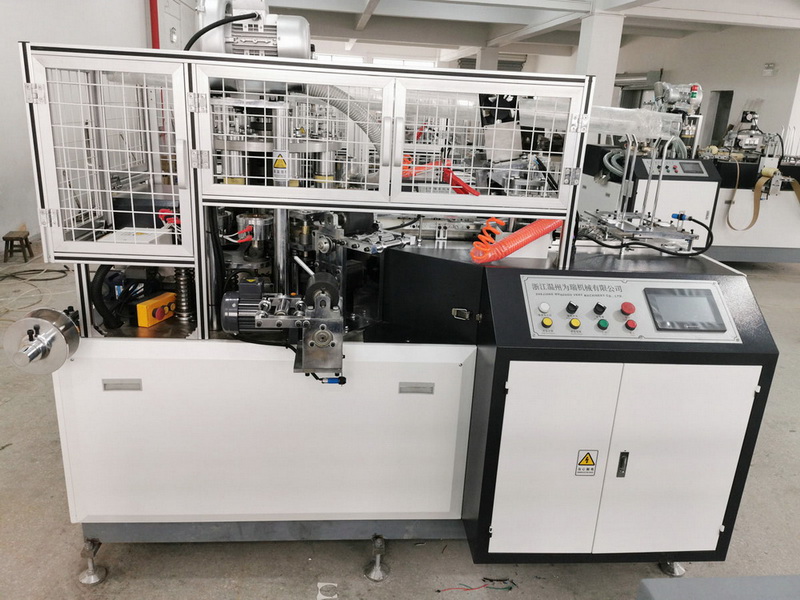

纸杯机YQ-1680

名称 槽轮型单盘纸杯机
型号 YQ-1680型 (带收杯架,PLC,超声波)
出厂价
对应纸杯尺寸 3-16OZ
材料要求 单双淋膜纸都可以
速度 75-85 pcs/min
纸张厚度要求 160-300g/㎡;±20g/㎡
电压要求 380V,50HZ

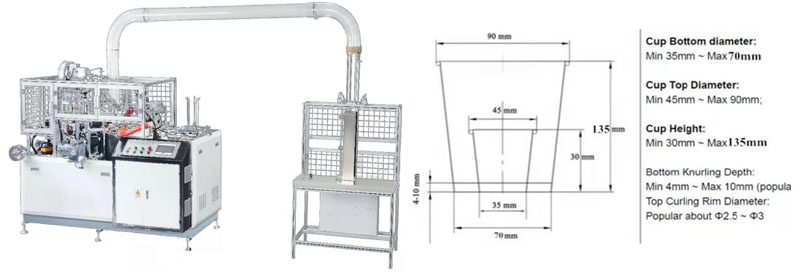

纸杯规格 底 35-70mm,上45-90mm,高 32-135mm
供气要求 0.6-0.8Mpa; 0.4m³/min
功率 6kw
重量 2000kg
尺寸 (mm) 主机 L:2100mm;W:1200mm;H:1800mm
收杯架 100kgs L:900mm;W:600mm;H:1500mm
杯身粘合方式 超声波
底部滚花 吹气加热
可以按照客户要求定制模具(交货期38天)

配置表

标配 ○           选配★

主配置清单 品牌 产地 可选
主电机 至宝 上海
滚花电机 至宝 上海
送底电机 汇川 深圳
底部步进电机 汇川 深圳 日本富士★
润滑电机

TROCHOLD PUMP

深圳
触摸屏 汇川 深圳 威伦★
总电源 正泰 浙江 法国施耐德★
变频器 汇川 深圳 日本三菱★
PLC 汇川 深圳 日本三菱★
交流接触器 正泰 浙江 法国施耐德★
传感器 欧姆龙 日本
超声波 科鉴 浙江 台湾长荣★
传动器 台中 浙江
按钮开关 奥托尼克斯 韩国
温度模块 奥托尼克斯 韩国
气动元件 PNEULEAD 上海 日本亚德客★

零件目录

No. Spare part Quantity Picture
1. Inner hexagonal spanner 1set
2. Screwdriver(+-) 2
3. Knurled wheel 1
4. Open-end wrench 3pcs
5. Adjustable spanner 1pc
6. Oil gun 1pc
7. All in box 1pc

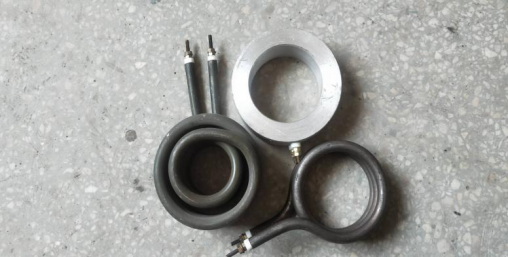

8 Heating ring 3

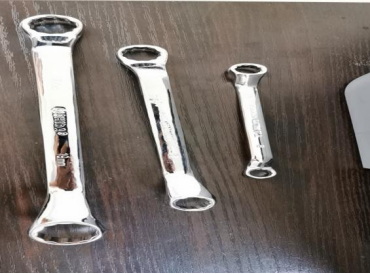

9 Box spanner 3
10 Foot screws 6

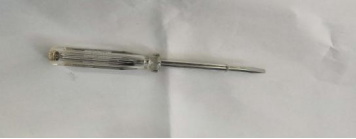

11 Electroprobe 1

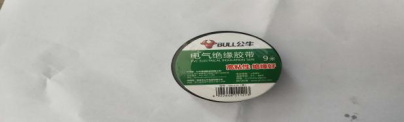

12 Insulated rubber tape 1

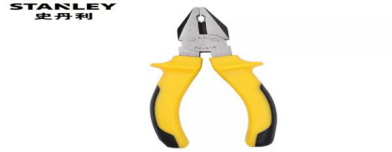

13 Pincer pliers 1

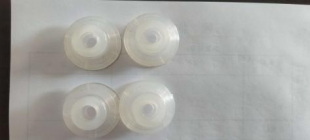

14 Skin absorption 4
15 Crank 1

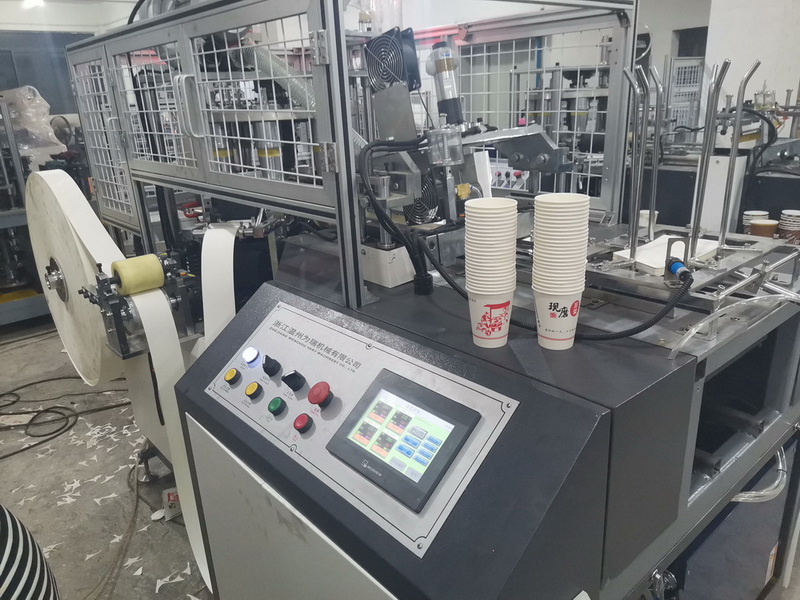

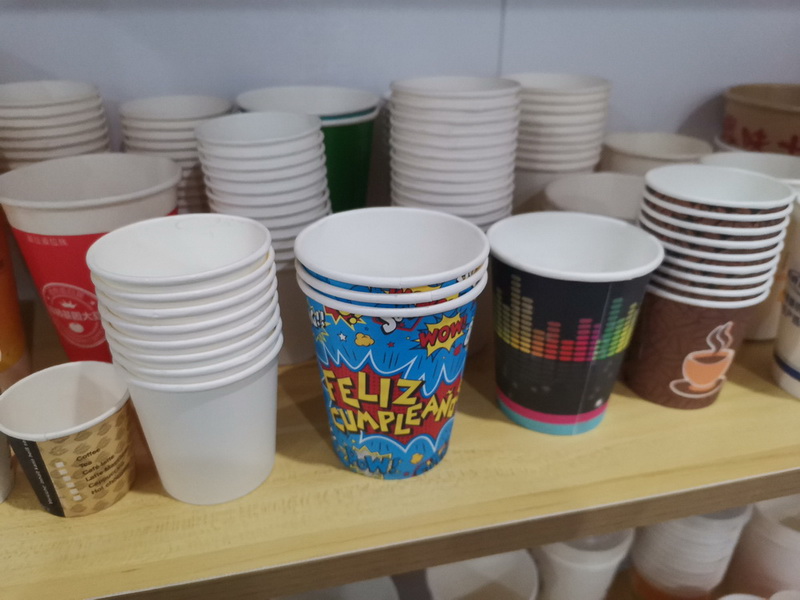

Paper Cup Sample:
Adopt Open Cam for the dividing moving, compare with index gear box,
easy maintenance, stable and reliable, easy replace broken parts.

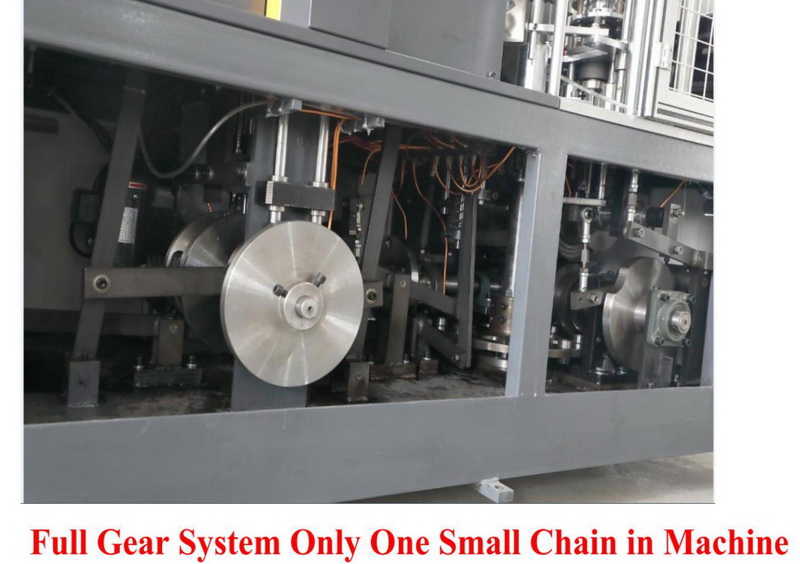

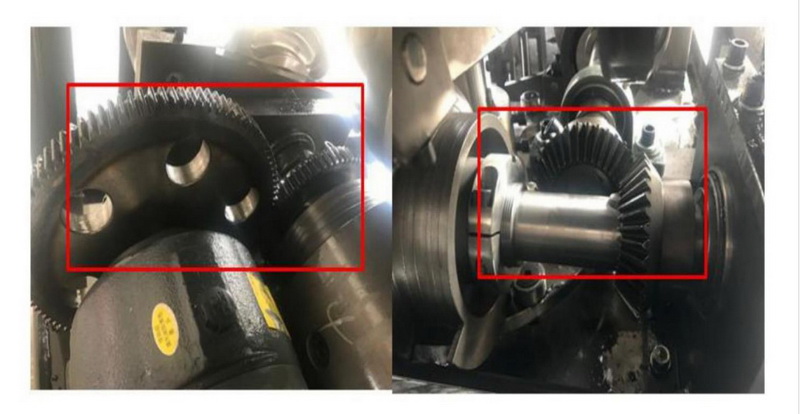

Main mechanism and moving parts are controlled by quality gears, which is
more efficient and more stronger than chain and axis.

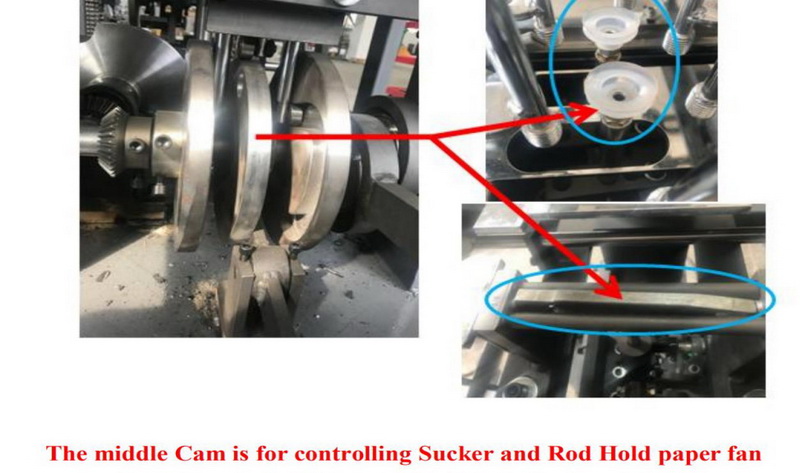

Adopt Three Cam which for control Machine Fours Spare parts
running( Running Stable for sealing paper fan, Also difficult broken)

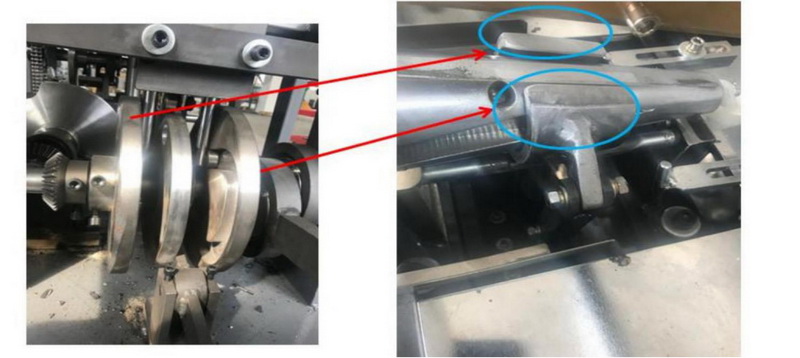

New Multi-function cam design
The left Cam is for control the left closing holder.
The right Cam is for control the right closing holder.

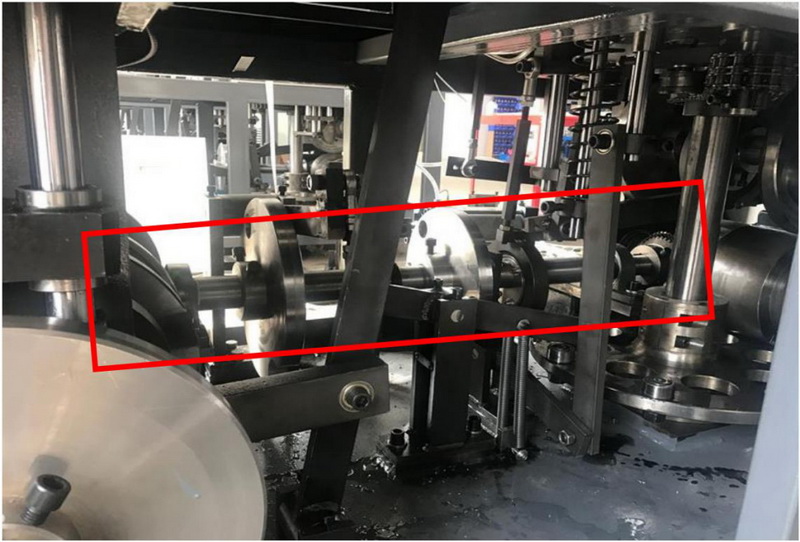

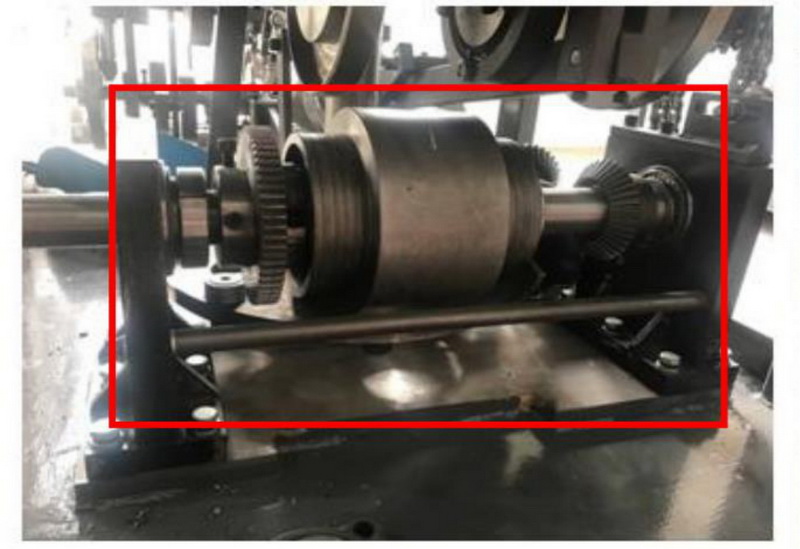

Machine inner with Single Shaft from Start to End for control whole
machine Running which difficult broken and easy control Whole machine running

Automatic Oil Lubrication System For oil lubrication machine moving
Spare Parts Which to Make sure machine running high Speed but spare still
keep long Spanlife

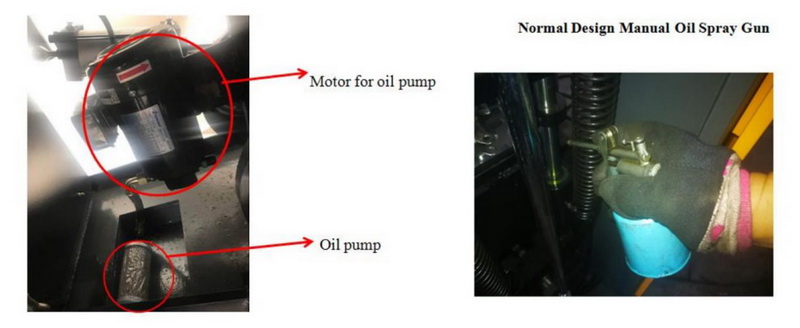

Automatic oil Lubrication system

The automatic oil lubrication system which keep machine high speed running
smooth, also keep the moving parts with long span life .
Manual oil machine moving parts : the worker to do it which easy forget it.
If machine runs long time without oil lubrication ,the machine will be very easy
broken.

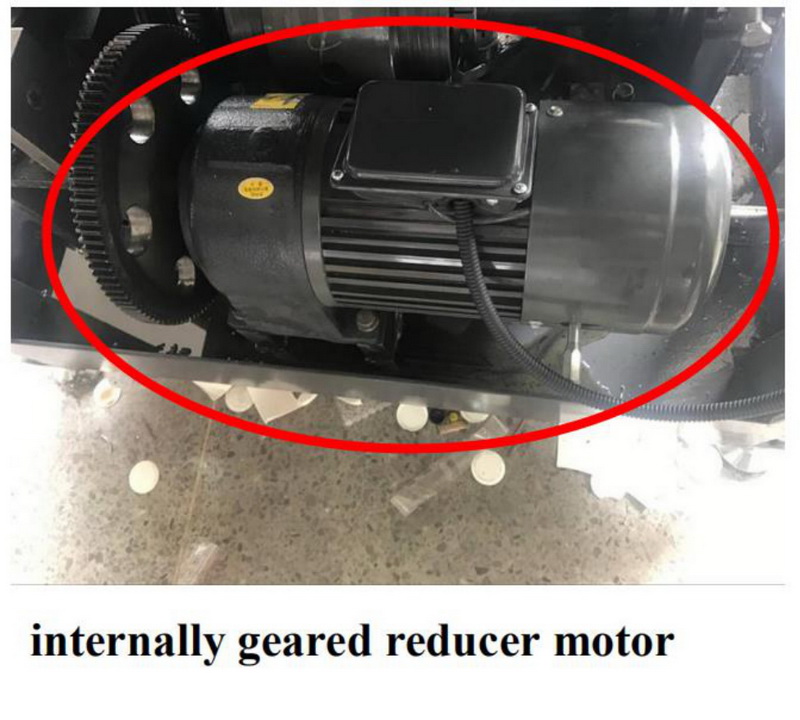

Machine With Reducer Motor which Keep sure Machine running Stable in
high Speed ( Normal Machine the Motor and reducer is Separate connected by
belt each broken if run high Speed)
